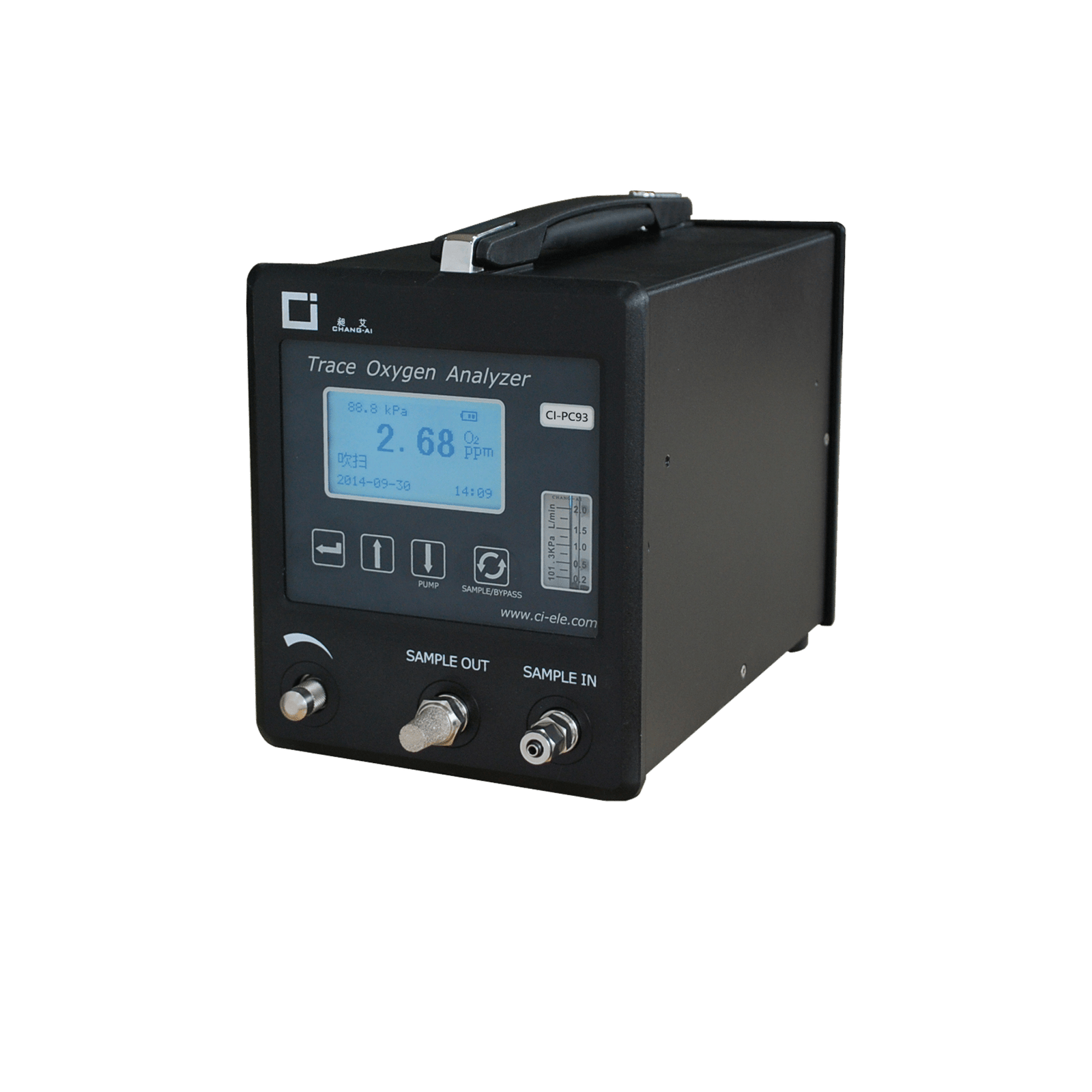

Portable Trace Oxygen Analyzer (CI-PC93)
-
With overpressure protection, when the pressure in the gas path exceeds the pressure protection range, automatically cut off the gas path on both sides of the sensor chamber;
-
High precision pressure automatic compensation, reduce the impact of pressure on the measurement accuracy;
-
With over range protection, when the oxygen concentration is higher than the protection limit value, the device will automatically cut off the gas path on both sides of the sensor chamber, to avoid the sensor in the high oxygen concentration environment for a long time and affect its performance and life.
Principle: Electrochemical
Measuring range: 0~10/100/1000ppm/1/25.00% O2
Accuracy:
0.01~9.99ppm O2: ±5%FS
10.0~99.9ppm O2: ±3%FS
100~1000ppm O2: ±2%FS
Repeatability:
0.01~9.99ppm O2: ±2.5%FS
10.0~99.9ppm O2: ±1.5%FS
100~1000ppm O2: ±1%FS
Stability:
0.01~9.99ppm O2: ±2.5%FS/7d
10.0~99.9ppm O2: ±1.5%FS/7d
100~1000ppm O2: ±1%FS/7d
Response Time: T90<60s (25°C)
Power Supply: AC 100~240V, 50/60Hz
Communication: RS485(standard)/RS232(optional)
Ambient Temperature.: 0~+45°C
Ambient Humidity:<80%RH
Sample Gas Flow: 1~1.5L/min (recommended: 1.2L/min)
Sample Gas Pressure: Equipped with needle valve, within 35-210 kPa, ensure the flow is within 1-1.5L/min
Analog Signal: 1 group,4~20mA/0~20mA/0~1V/0~5V/0~10V/1~5V, can be set freely
