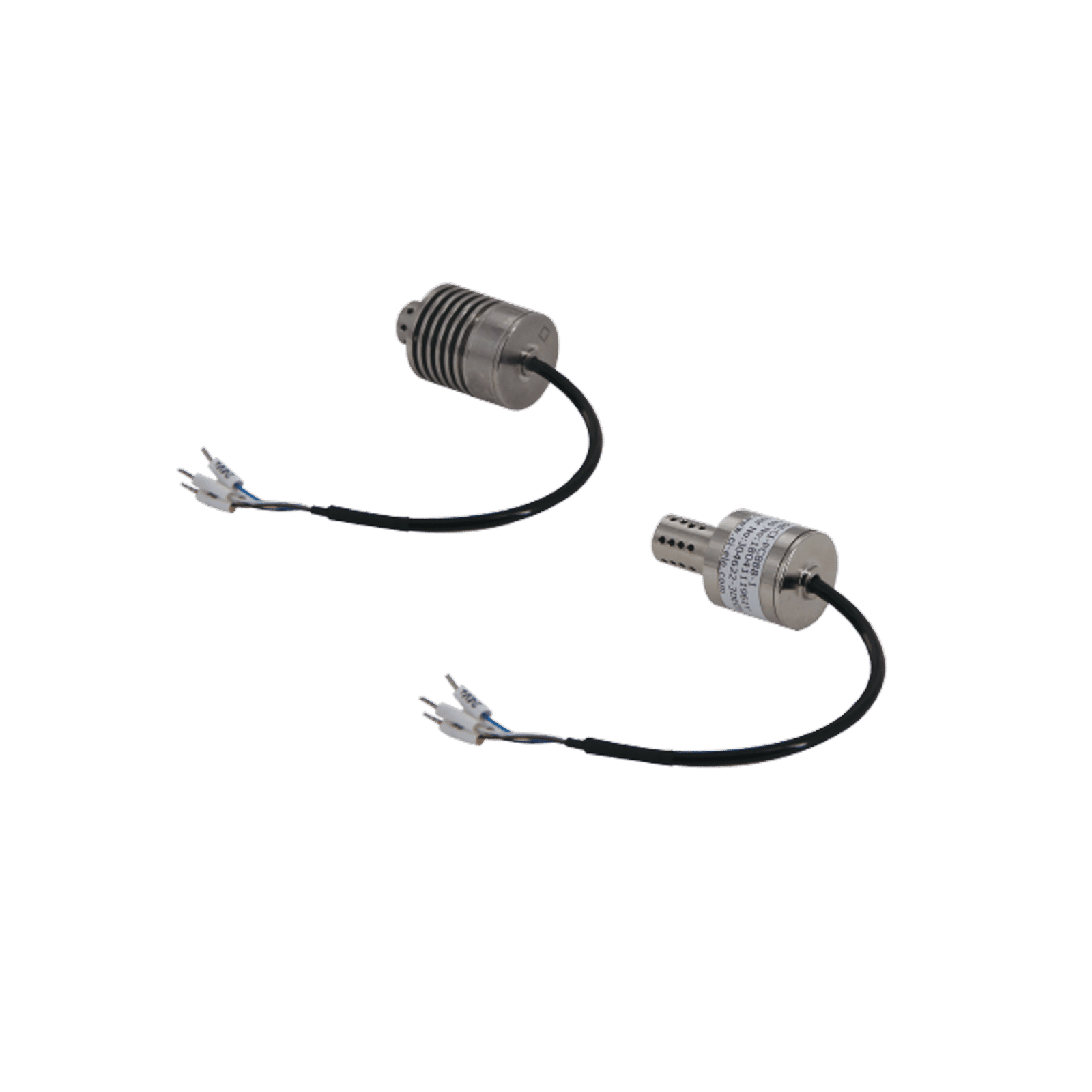

CI-PC888/-1 Oxygen Transmitter
[navxt]
-
RS485 two-way communication function: can communicate with computer or other digital communication equipment directly;
-
Good performance: 3D ion flow oxygen sensor, high precision, good stability, fast response;
-
Small size, easy to install and use.
Principle: 3D Ion Flow
Measuring range:
CI-PC888: 0~40.00% O2
CI-PC888-1: 0~25.00% O2
Accuracy: +2%FS
Repeatability: +1%FS
Stability: +1%FS/ 7d
Response Time: T90<30s
Power Supply: DC 12~24V
Consumption: <5VA
Ambient Temperature: 0~+45°C
Ambient Humidity:<85%RH
Sensor Life: More than 5 years (normal use)
Output Mode:
CI-PC888: RS485
CI-PC888-1: TTL/ RS485
Dimensions of mounting holes:
CI-PC888: 30mm (2×Ф3.5)
CI-PC888-1: 25mm (2×Ф3.5)
