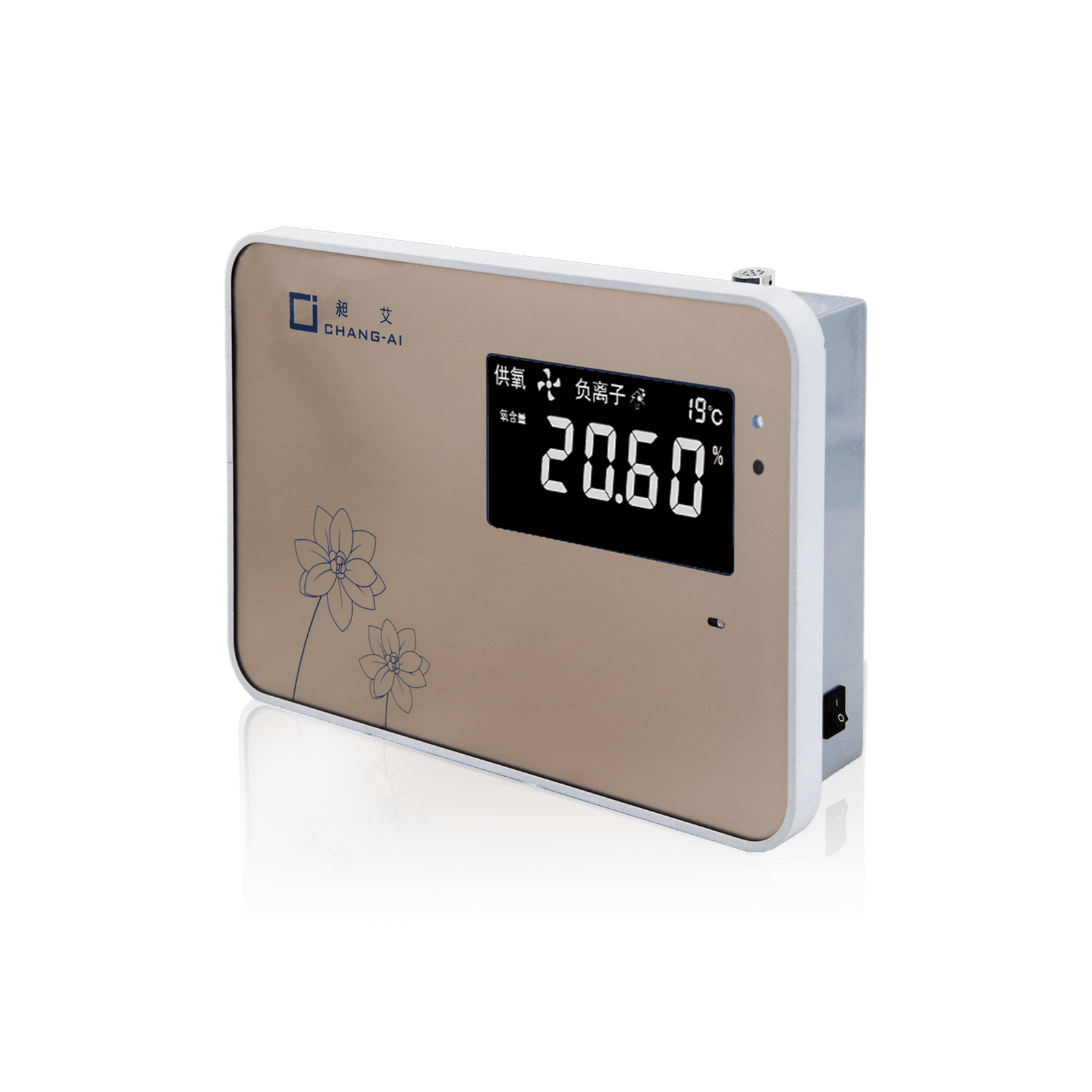

High Altitude Oxygen Monitor (CI-PC89)
High Altitude Oxygen Monitor (CI-PC89)
-
3D ion current sensor probe as the measuring unit, the use of advanced digital processing technology, anticross interference, high measurement accuracy, good stability, long service life;
-
Set oxygen monitoring and control in one, in the measurement of environmental oxygen changes at the same time, the environmental oxygen concentration adjustment, to achieve the human body best adapt to the environment;
-
With the function of releasing negative oxygen ions, improve alveolar air exchange function, enhance oxygen absorption rate.
Principle: 3D Ion Flow
Measuring Range: 0~40.00% O2
Accuracy: +1%FS
Repeatability: +0.5%FS
Stability: +0.5%FS/ 7d
Response Time: T90<20s
Power Supply: AC 100~240V, 50/60Hz
Ambient Temperature:-10~+50°C
Ambient Humidity:<80%RH, no condensate
Analog Signal: 4~20mA/0~20mA/0~10V output
Communication: RS485 or wireless (optional)
Absolute Altitude: 0~6000m
Oxygen Concentration Control: The microcontroller controls the switch of the oxygen supply valve
Oxygen Pressure: 0.2~0.6MPa
Oxygen Inlet: Φ6 quick plug joint
Oxygen Outlet: Diffusion, with noise reduction
Negative Ion: Built-in negative ion generator, can be switched by remote
Panel Colour: Black or Gold available
