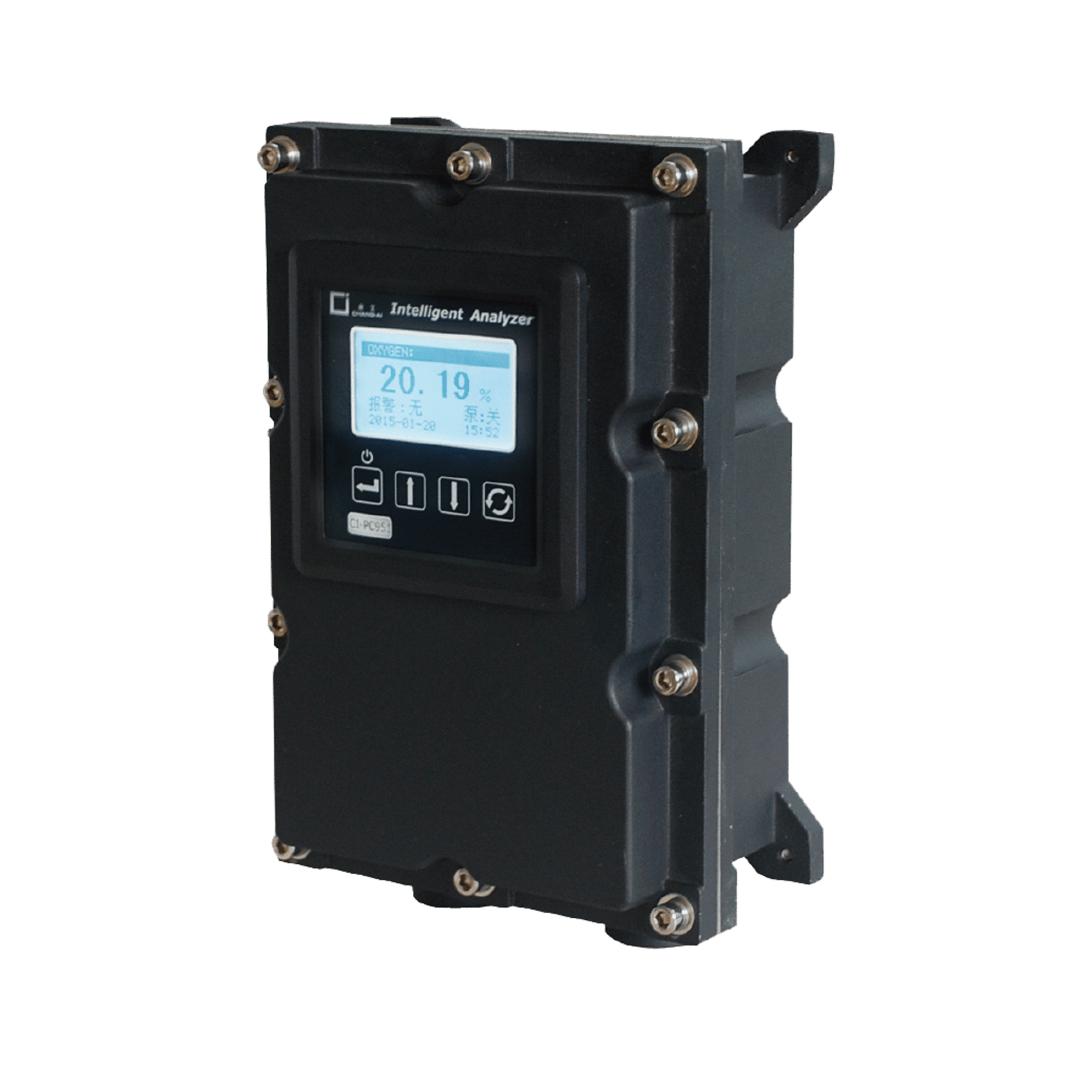

CI-PC951 Online Wall-mounted Oxygen Analyzer
-
Microprocessor as the core, good long-term stability, high reliability;
-
Using electrochemical sensor as measuring unit, high precision, long calibration cycle;
-
High precision temperature and pressure automatic compensation, reduce the impact of temperature and pressure on the measurement accuracy;
-
With overpressure protection, when the pressure in the gas path exceeds the pressure protection range, automatically cut off the gas path on both sides of the sensor chamber.
Principle: Electrochemical
Measuring range: 0~25.00% O2
Accuracy: ±2%FS
Repeatability: ±1%FS
Stability: ±1%FS/7d
Response time: T90<20s
Measurement: Online
Calibration Period: 1 year (recommended)
Power Supply: DC 24V
Consumption: <15VA
IP Grade: IP64
Communication: RS485(standard)/RS232(optional)
Ambient Temperature: -10~+45°C
Ambient Humidity: <90%RH
Switching Signal: 1 group, 4~20mA/0~20mA/0~1V/0~5V/0~10V, can set the mode freel; Load: < 500 Ω
Sample Gas Pressure: Equipped with needle valve, in the 35~210 kPa, ensure to provide 0.5~1L/min flow
Sample Gas Flow: 0.5~1L/min
