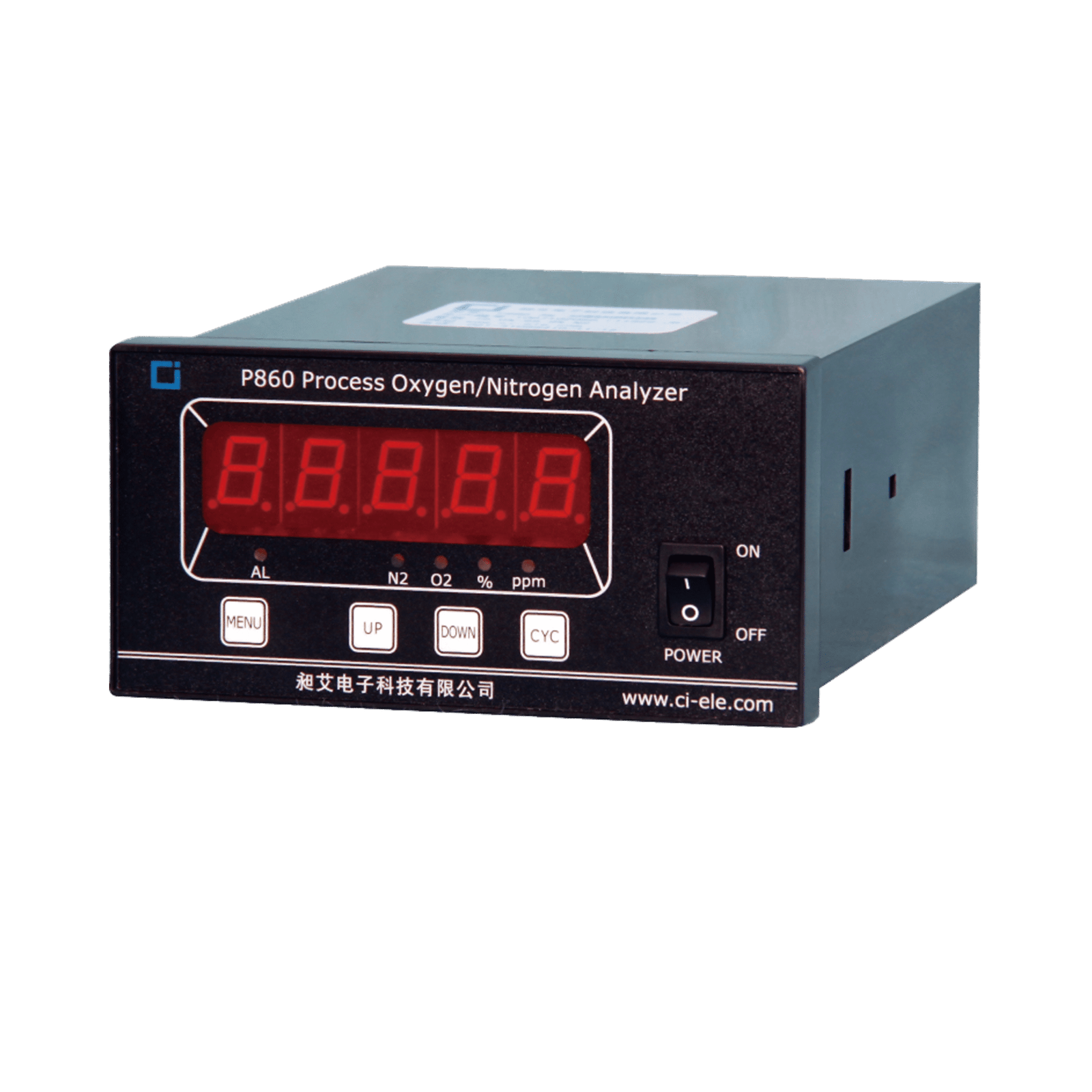

Online Oxygen/Nitrogen Analyzer (P860)
Online Oxygen/Nitrogen Analyzer (P860)
-
New long-life ion current sensor with high sensitivity and fast response speed.
-
Nitrogen concentration calculation based on oxygen concentration, with corresponding display output.
-
Alarm function: when oxygen or nitrogen concentration deviates from the alarm value, the alarm threshold can be freely set across the full measurement range.
-
Analog signal output: isolated 4–20 mA current signal output.
Sensor: Ion Flow
Measuring Range:
P860-30 1000ppm~21% O2
P860-40 100ppm~21% O2
P860-50 10ppm~21% O2
P860-3N 79%~99.9% N2
P860-4N 79%~99.99% N2
P860-5N 79%~99.999% N2
Accuracy:
10ppm~100ppm O2: ±5% FS
10ppm~2% O2: ±2% FS
10ppm~21% O2: ±1.5% FS
Stability: ±2%FS/7d
Response Time: T90≤20s
Measurement: Gas-Entry Type
Sample Gas Flow: 400~600ml/min
Ambient Temperature: 0~+45°C
Ambient Humidity:<80%RH
Analog Signal: Programmable 4~20mA current output (External Load <5000)
Power Supply: AC 220V±10%, 50/60Hz or DC 24V
