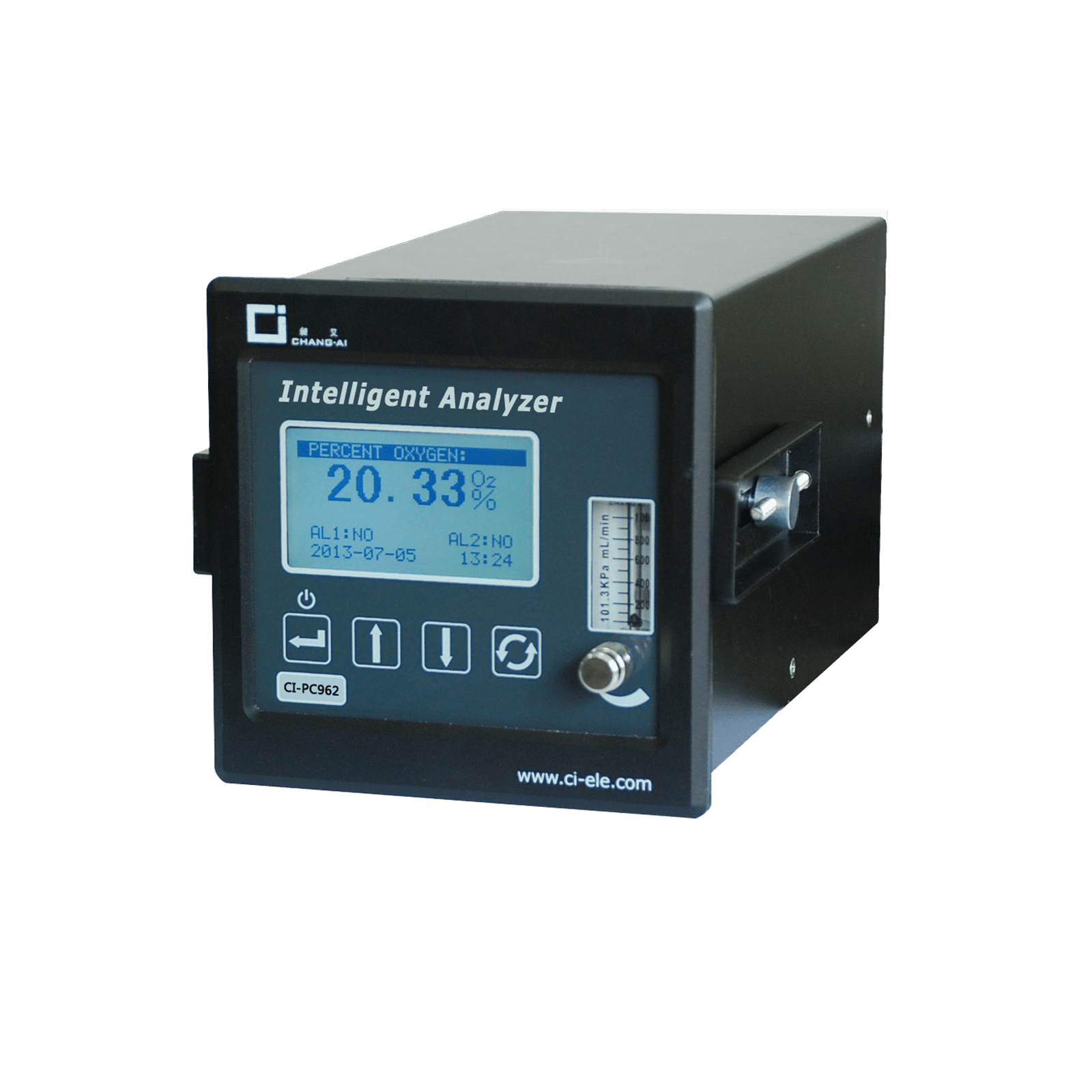

Online Oxygen Analyzer (CI-PC962)
-
The electrochemical sensor is used as the measuring unit, with high precision, long service life and stable signal output;
-
The sensor does not need external power supply and heating;
-
The sensor is not affected by CO2, CO, H2S, NOx, H2;
-
Menu lock switch: to prevent misoperation that might change the parameters on the analyzer;
-
When the oxygen concentration deviates from the alarm value, the alarm value can be set in the full range of arbitrary.
Principle: Electrochemical
Measuring range: 0~25.00% O2
Accuracy: ±2%FS
Repeatability: ±1%FS
Stability: ±1%FS/7d
Response time: T90<20s
Power Supply: AC 100~240V, 50/60Hz
Working Temperature: 0~+45°C
Working Humidity: <90%RH
Sample Gas Flow: 0.5~1L/min
Storage Temperature: -20~+60°C
Communication: RS485(standard)/RS232(optional)
Control Signal: Access to a group of DC 9~28V signal control pump (optional)
Analog Signal: 2 groups of alarm switch output
Sensor Life: More than 2 years (normal use)
Instrument Life: More than 5 years (normal use)
Dimensions: L X W X D = 144mm×144mm×251mm
