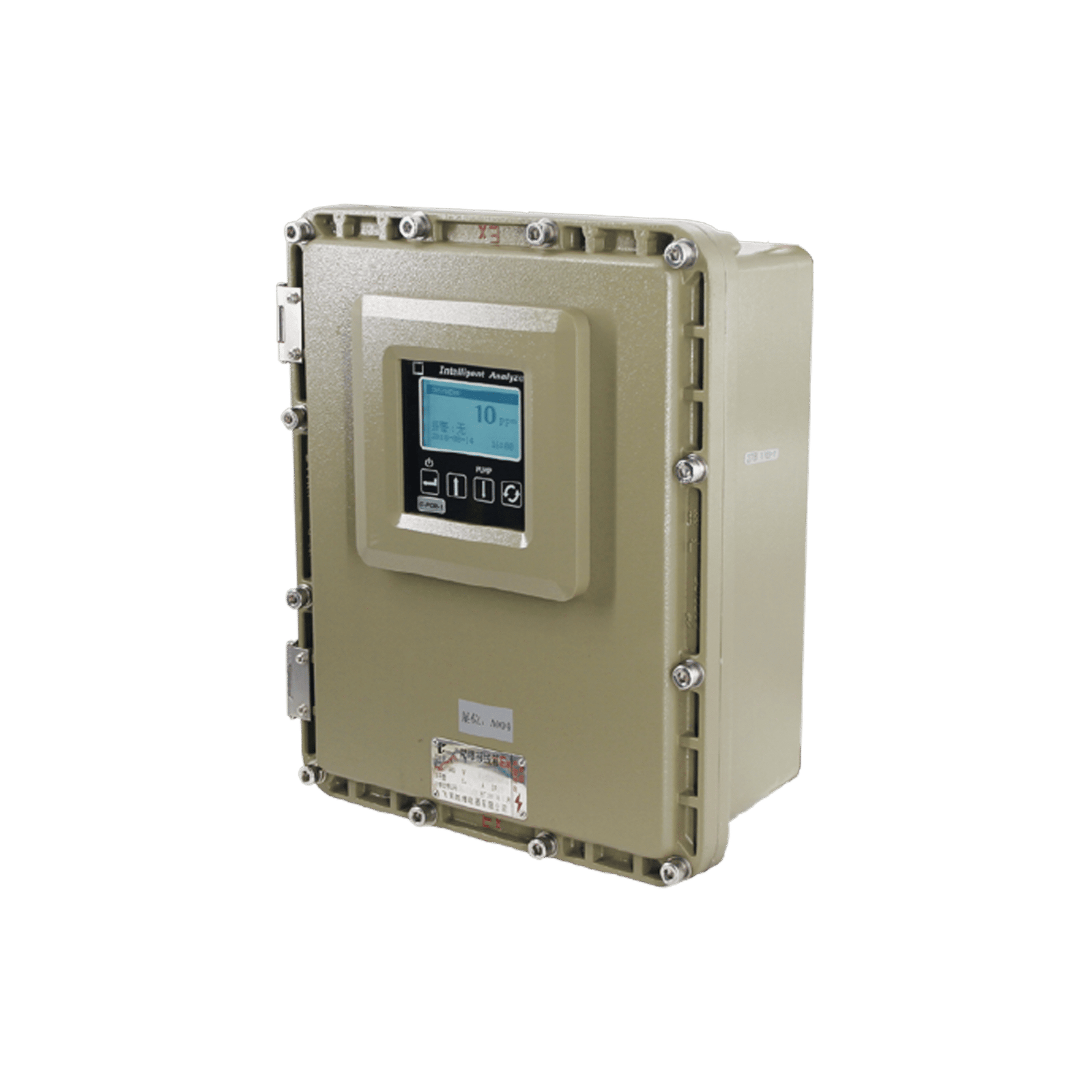

Online Explosion-Proof High Content Oxygen Analyzer (CI-PC851-1)
-
Microprocessor as the core, good long-term stability, high reliability;
-
Menu lock switch: prevent misoperation to change the analyzer parameters and affect its normal operation;
-
Data storage: support U disk and SD card data storage, large data storage capacity facilitate users for data processing and analysis;
-
Internal timing data storage and convenient user quickly see test data.
Principle: 3D Ion Flow
Measuring Range: 10~97.00%/99.99%, 97~99.99% O2
Accuracy: ±1%FS
Repeatability: ±0.5%FS
Stability: ±0.5%FS/7d
Response Time: T90<20s
IP Grade: IP65
Ex-Mark: Ex d IIB T6 Gb
Measurement Method: Gas inlet type
Calibration Cycle: 1 year (recommended)
Power Supply: DC 24V
Consumption: <25VA
Communication: RS485(standard)/RS232(optional)
Ambient Temperature.: 0~+45℃
Ambient Humidity: <80%RH
Sample Flow: 400~600ml/min
Sample Gas Pressure: Atmospheric Conditions±10% (Gas outlet should be atmospheric conditions)
Analog Signal: 1group, 4~20mA/0~20mA/0~1V/0~5V/0~10V/1~5V (Can set freely); Load: <500Ω
Dimensions: L X W X H=300mm×200mm ×175mm
