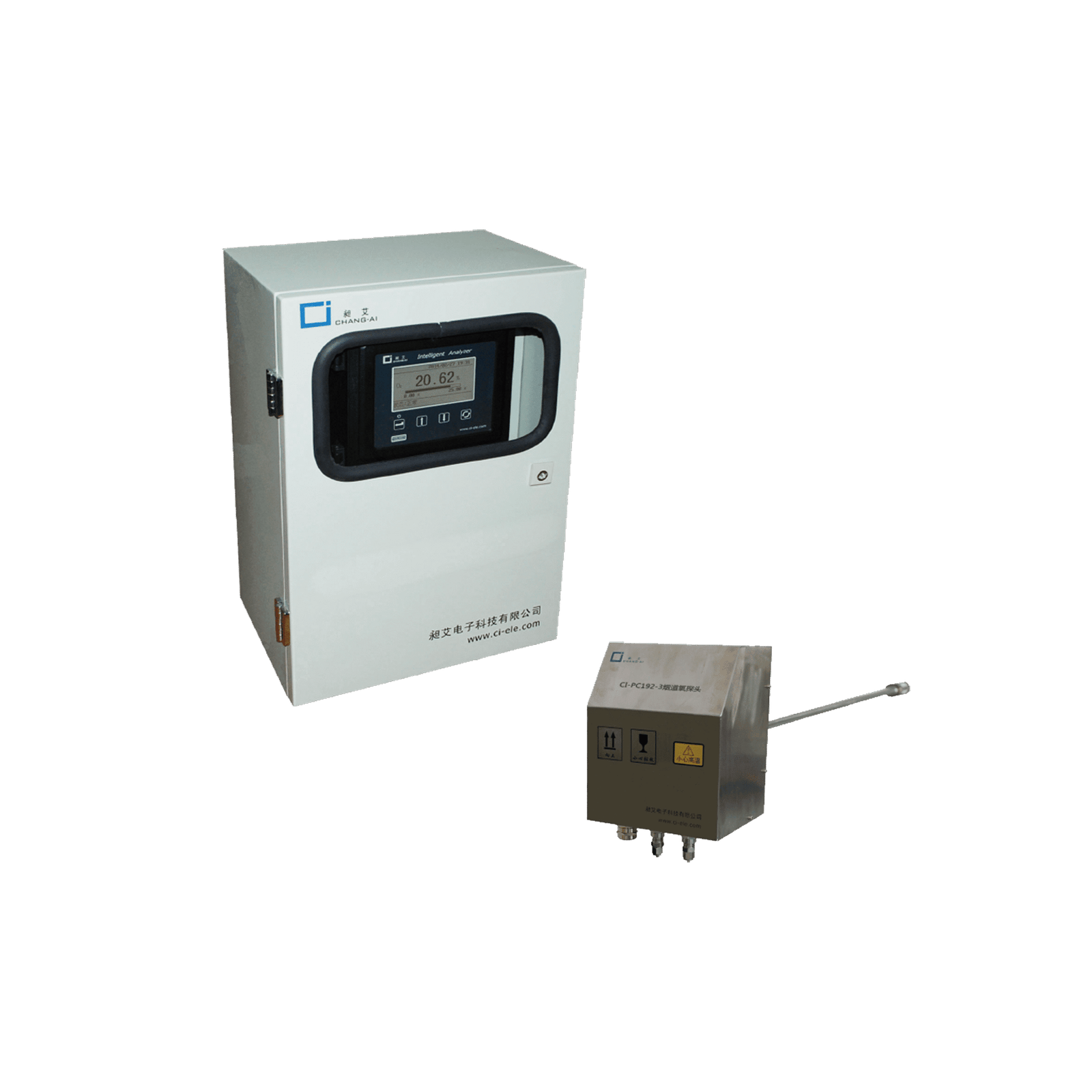

CI-PC192 Flue Oxygen Analysis System
-
It has the characteristics of intelligence, good stability, high reliability, long calibration cycle, etc.;
-
Menu lock function: prevent misoperation to modify the analyzer parameters and affect its normal operation;
-
Automatic calibration function: can automaticallycomplete the calibration of the instrument;
-
Automatic backblowing function: according to the instrument settings to automatically complete the instrument purging;
-
When the oxygen concentration deviates from the alarm value, the alarm value can be set in the full range of arbitrary.
Principle: Ion Flow
Measuring Range: 0~25.00% O2
Accuracy: ±2%FS
Repeatability: ±1%FS
Stability: +1%FS/ 7d
Response Time: T90<60s (after full preheating)
Power Supply: AC 100~240V, 50/60Hz
Communication: RS485(standard)/ RS232(optional)
Consumption: <20VA
Ambient Temperature: -10~+50°C
Probe Ambient Temperature:
Conventional type: 0~+500°C
High temperature resistant type: 0~+700°C
Ultra-high temperature resistance type: 0~+1200°C
