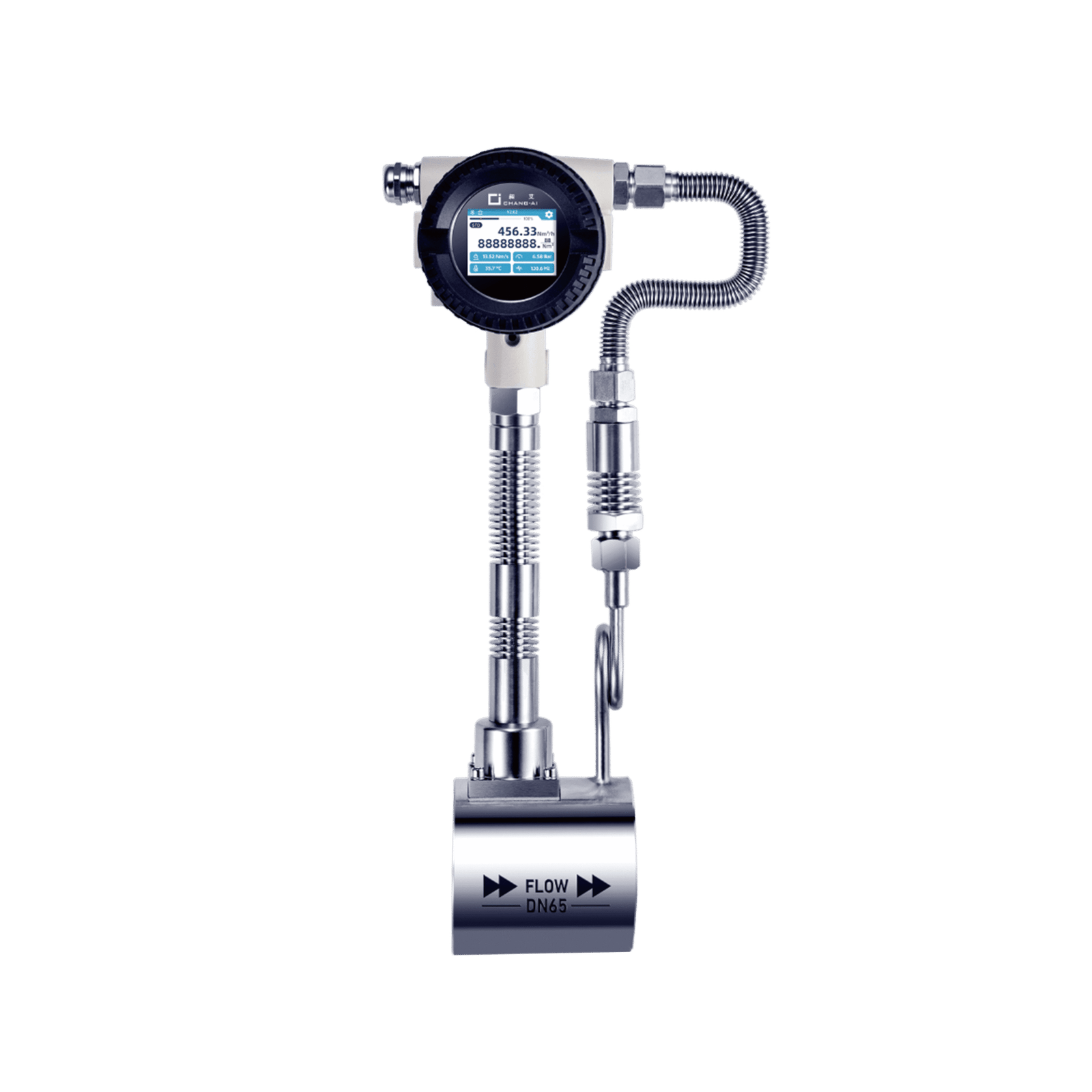

CI-FV20x-VS Steam Vortex Flow Meter
The CI-FV20x-VS measures gas, steam, or liquid using the Kármán vortex principle, offering high reliability, simple structure, and strong anti-pollution performance. Built-in temperature and pressure sensors enable real-time mass flow calculation through standard density compensation. Its dual ultra-sensitive vortex sensor detects both flow and interference signals. The advanced algorithm filters out vibration and electromagnetic noise, ensuring accurate readings. Featuring DSA (Digital Spectrum Analysis) technology, it provides a wider turndown ratio, better low-flow detection, and stronger anti-disturbance performance than traditional models. Certified explosion-proof with IP67 protection: Ex db IIC T6 Gb / Ex tb IIIC T80°C Db. A compact and powerful solution for industrial flow monitoring.
Feature:
High Sensitivity: Low measuring limit of gas flow rate reaches 1.5 m/s (Actual Flow);
Wide Measuring Range: Turndown ratio of 1:53, surpasses traditional vortex flow meters;
Explosion-Proof Certification: Ex db IIC T6 Gb / Ex tb IIIC T80°C Db;
Robust Protection: IP67 rating for dust and water resistance;
Anti-Vibration Capability: Equipped with anti-vibration structure and DSA technology;
Dual Vortex Sensor: Ultrasensitive detection of both flow and vibration signals;
DSA Technology: Digital full spectrum analysis separates flow, vibration, and electromagnetic disturbance signals;
Dirty and Wet Gas Compatibility: Suitable for compressed air, oxygen, natural gas, steam, and other industrial gases;
Integrated Pressure Sensor: Monitors gas pressure in real time;
Integrated Temperature Sensor: Monitors gas temperature in real time;
No Moving Parts: Minimizes wear and pressure drop;
Modbus RTU Interface: Standard RS485 industrial communication protocol;
Analog Signal Output: 4–20 mA current output for control systems;
Pulse Output: Direct signal for flow rate monitoring;
Bluetooth Connectivity: Enables wireless configuration and data transmission;
Advanced HMI: 2.0″ IPS capacitive touch LCD, Ultra-wide viewing angle, Multi-functional, user-friendly interface;
Fully Welded Structure: Superior resistance to corrosion, high pressure, and high temperature;
Measuring Medium:
Medium: Gas / steam / liquid
Flow:
Measuring Range: 1.5 m/s … 80 m/s (Gas/steam, actual velocity)
0.15 m/s … 8 m/s ( liquid)
Accuracy: Class 1.0
Repeatability: ±0.2% RD
Reference Condition: 20°C, 1 bar(a) – ISO 1217 (configurable)
Pressure:
Measuring Range: Standard: 0~1.7 MPa(a)
Optional: 6.3 MPa(a)
Accuracy: ±0.5% FS
Temperature:
Measuring Range: -40~+160 °C (standard)
-40~+280 °C (mid temperature)
-40~+350 °C (high temperature)
-180~+40 °C (low temperature)
Accuracy: ±0.5 °C (±1.0 %FS @ >100 °C)
Power:
Power: DC18~30 V 10W @ DC 24V
Display:
Display: 2.0″ IPS LCD with capacitive touch
Output:
Flow rate/Temperature/Pressure: Standard 4~20 mA (configurable)
Frequency Output: Actual Flow Rate (standard)
Pulse: Consumption/alarm (standard)
Digital Output: Modbus RTU RS485 (standard)/HART (optional)
Wirless Communication: Bluetooth (standard), Wi-SUN (optional), IOT-4G (optional)
Connector: Wiring Terminal
Operating Environment:
Environment Temperature: -40~+85 °C
Environment Humidity: 0~95%RH
Ex-grade & Protection Code:
Explosion-proof Class: Ex db IIC T6 Gb / Ex tb IIIC T80°C Db
Protection Code: IP67
Other:
Process Connection: Wafer-type/Flange-type
Product Material: Main Body: SUS304/316L
Vortex Sensor: SUS316L
Meter Housing: aluminum (standard)/stainless steel (optional)
EMC: Compliant with IEC 61326-1
