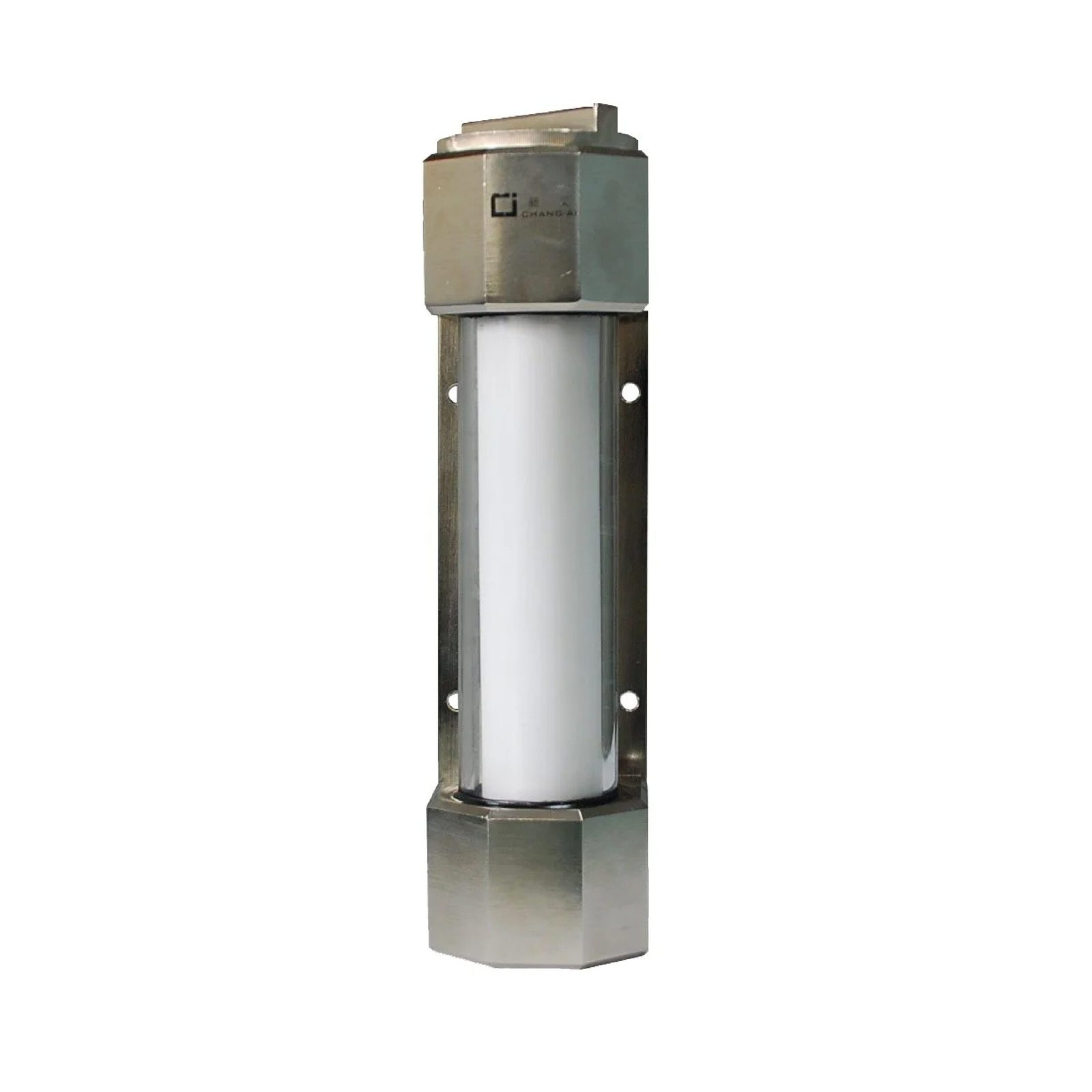

CI-GF2600/2800 Precision Filter
High Efficiency: Remove dust and other particulate matter through the outer cylinder of the polymer polyethylene filter element, and then further remove impurities in the sample gas by activated carbon;
Quick Replacement: There is no dead angle inside the filter, and all parts are well connected, which can quickly replace the air inside;
The surface of the window is covered with a piece of toughened glass to enhance the impact protection of the window;
Easy to replace the filter element: The filter element is an independent structure, which is very convenient to replace.
Function: Removal of water, rosin, organic matter, etc.
Filter Material: Imported High Molecular Polyethylene/Activated Carbon
Filter Diameter: 10µm
Work Pressure: -1~1kPa
Temperature Range: 5~45°C
Gas Intake: 1/4″NPT, can be configured according to the needs of the joint, the lower end is the inlet.
Gas Outlet: 1/4″NPT, the connector can be configured according to the needs, the upper end is the outlet.
