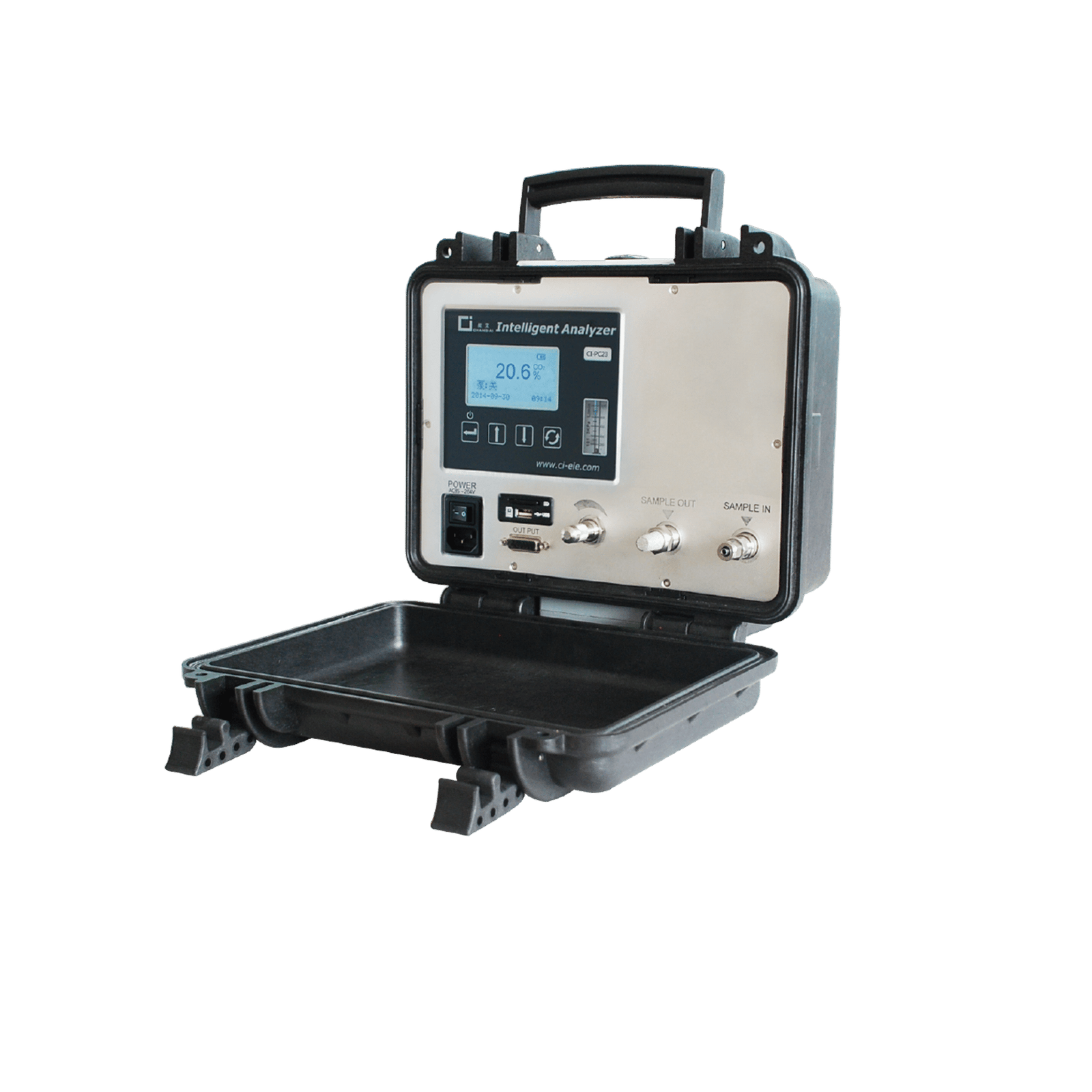

CI-PC23 Portable Infrared Gas Analyzer
-
NDIR Measurement Technology: The sensor does not contact the measured gas, effectively preventing sensor poisoning.
-
High-Stability Optical System: Infrared light source and interference-resistant optical filter ensure excellent long-term stability.
-
Microprocessor Control: Provides intelligent operation, high precision, strong stability, and extended calibration interval.
Principle: Non-dipersive Infrared (NDIR)
Measuring Range:
| Components | Min. Range | Max. Range |
| CO2 | 0~2000 ppm | 0~100% |
| CO | 0~5000 ppm | 0~100% |
| CH4 | 0~4.4% | 0~100% |
Accuracy: ±2%FS (±1%FS optional)
Repeatability: ±1%FS
Response Time: T90 15s (500ml/min)
Power Supply: AC 100~240V, 50/60Hz
Consumption: <20VA
Communication: RS485 (standard)/RS232 (optional)
Ambient Temperature: -10~+50°C
Ambient Humidity: <80%RH
Samplegas Pressure: Atmospheric Conditions ±10% (Gas outlet
should be atmospheric conditions)
