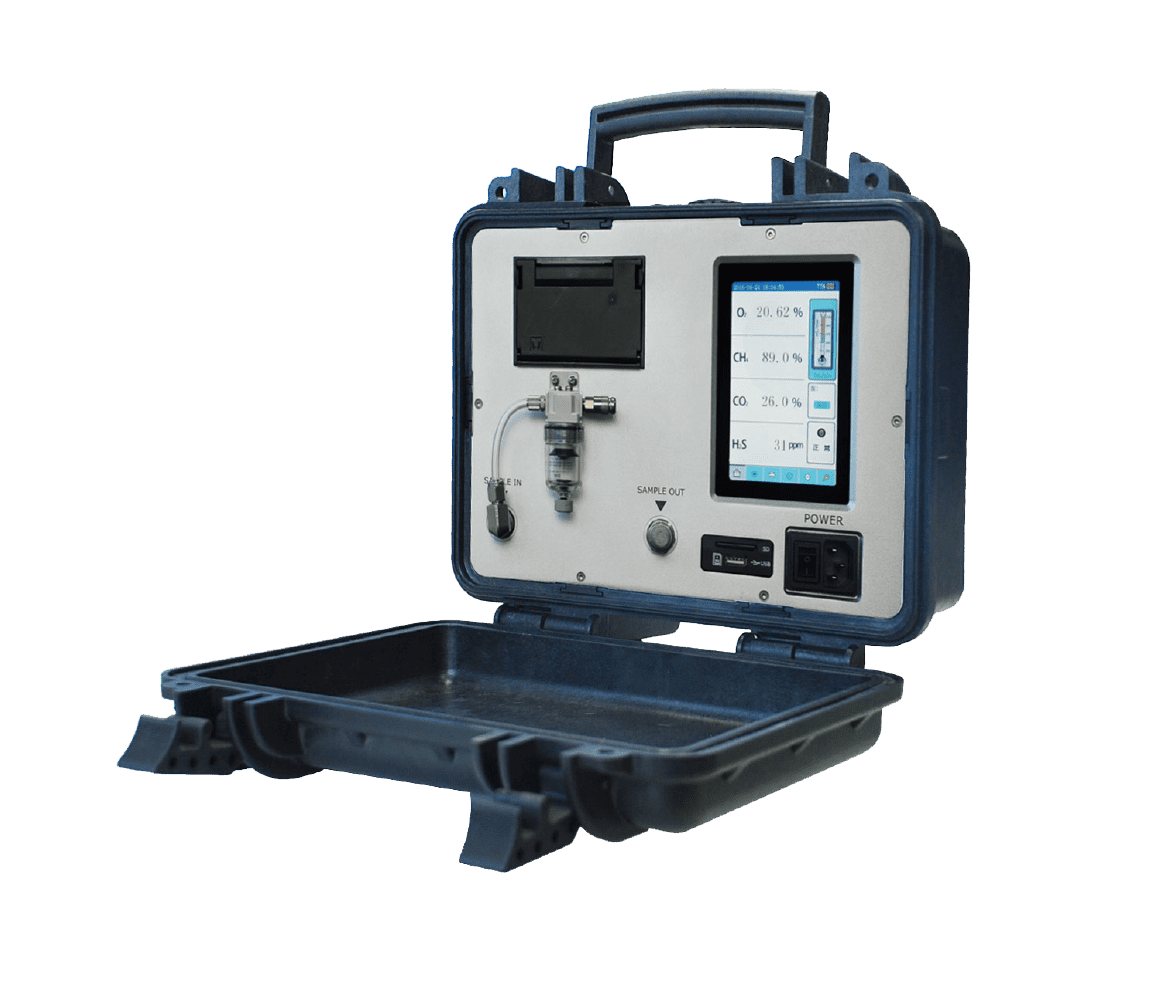

CI-PS10 Portable Biogas Analyzer

Portable Biogas Analyzer (CI-PS10)

MODEL : CI-PS10

Intelligent & Stable Performance:
Engineered with advanced intelligence and control algorithms, the analyzer offers excellent stability, high reliability, and a long calibration cycle;
Simultaneous Multi-Gas Detection:
Capable of accurately measuring oxygen (O₂), methane (CH₄), carbon dioxide (CO₂), and hydrogen sulfide (H₂S) concentrations in mixed gas streams, with no cross-interference;
Designed for Biogas Applications:
Optimized for use in demanding biogas environments, delivering consistent and accurate measurements in real-world field conditions;
Built-in Micro-Printer:
Integrated micro-printer allows on-site printing of current test data, supporting real-time documentation and reporting needs;
IP65 Protection Grade:
The rugged chassis meets IP65 standards for dust and water resistance, ensuring reliable performance in harsh environments;
Dual-Purpose Design: Online & Portable:
Equipped with a built-in high-capacity lithium battery, the analyzer supports both continuous online monitoring and convenient portable operation.

Measuring Components
Component	Range	Principle
O2	0~25.00%	Electrochemical
CH4	0~99.9%	NDIR
CO2	0~99.9%	NDIR
H2S	0~10000 ppm	Electrochemical

Power Supply: AC 100~240V,50/60Hz
Standby Time: >10 hours (in normal use)
Display Device: 5 inch color touch screen
Data Storage: SD card (standard)/U disk (optional)
Sensor Life: More than 2 years (normal use)
System Life: More than 5 years (normal use)
Measurement Method: Flow-through method
Sample Gas Flow: 300~600ml/min
Sample Gas Pressure: Atmospheric Condition ±10% (the air outlet must not be blocked)
