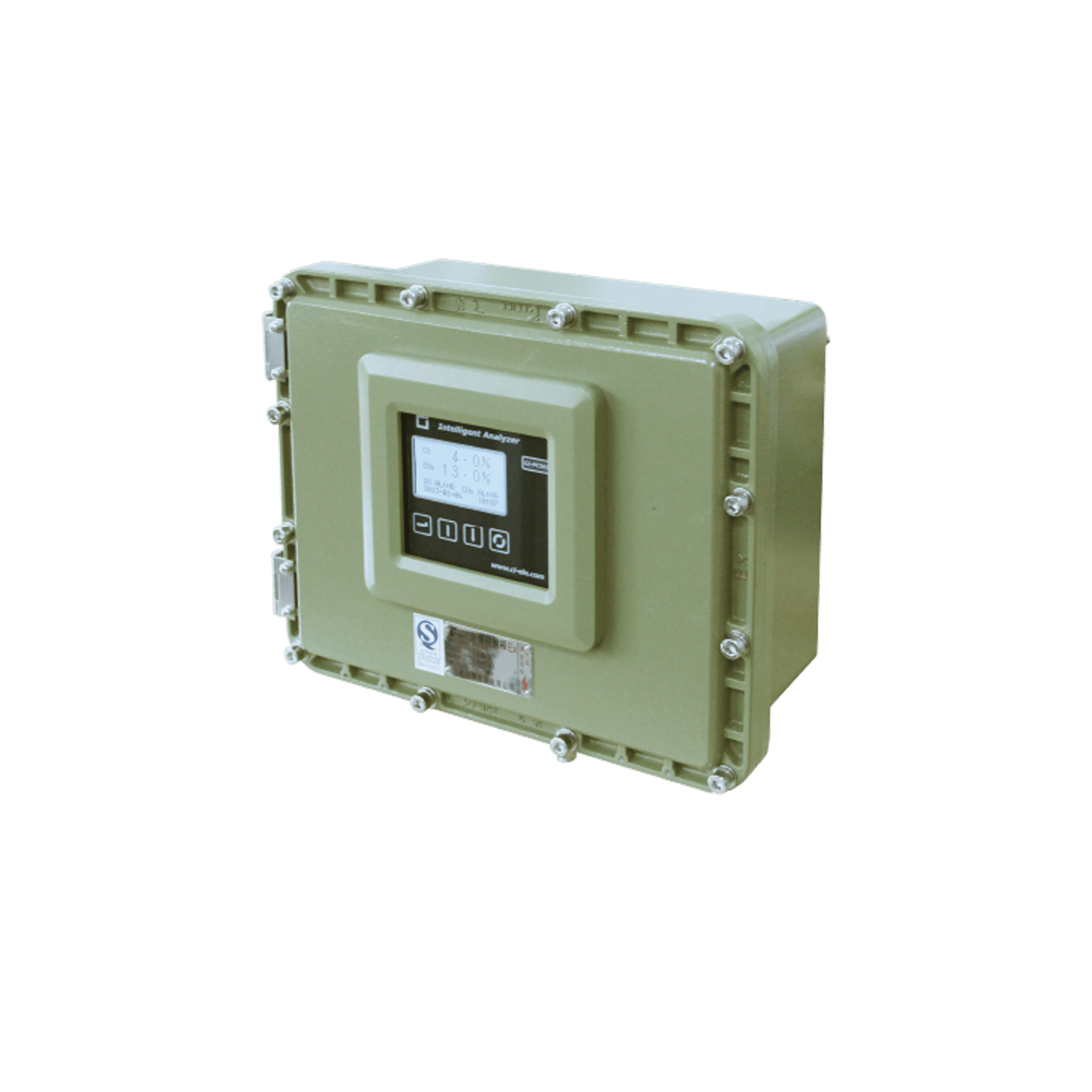

CI-PC251 Online Multi Component Gas Analyzer
Non-Contact Measurement: Utilizes non-dispersive infrared (NDIR) technology, ensuring that the sensor does not come into direct contact with the measured gas—eliminating the risk of sensor poisoning and enhancing longevity;
High Stability and Anti-Interference: Equipped with a stable infrared light source and precision optical filters, the analyzer offers strong resistance to environmental interference and excellent long-term stability;
Intelligent Design: Powered by a high-performance microprocessor, the system delivers intelligent control, exceptional measurement accuracy, and extended calibration intervals—ideal for continuous monitoring applications;
Configurable Alarm System: When gas concentration exceeds or drops below the preset threshold, an audible and visual alarm is triggered. The alarm value is fully adjustable across the entire measurement range to meet various safety requirements;
Principle: Non-dispersive Infrared (NDIR)
Measuring Range: 0~10.0% CO, 0~30.0% CO2
Accuracy: ±2%FS (±1%FS optional)
Repeatability: ±1%FS
Zero Drift: ±1%FS/7d
Range Drift: ±1%FS/7d
Response Time: T90<15s (500ml/min)
Power Supply: AC 100~240V,50/60Hz
Consumption: <20VA
Analog Signal: 2 groups (corresponding to CO and CO2)
Output Mode: 4~20mA
Load: <500Ω
Sample Gas Flow: 500~1000ml/min
Sample Gas Pressure: Atmospheric Condition ±10% (gas outlet should be atmospheric pressure)
