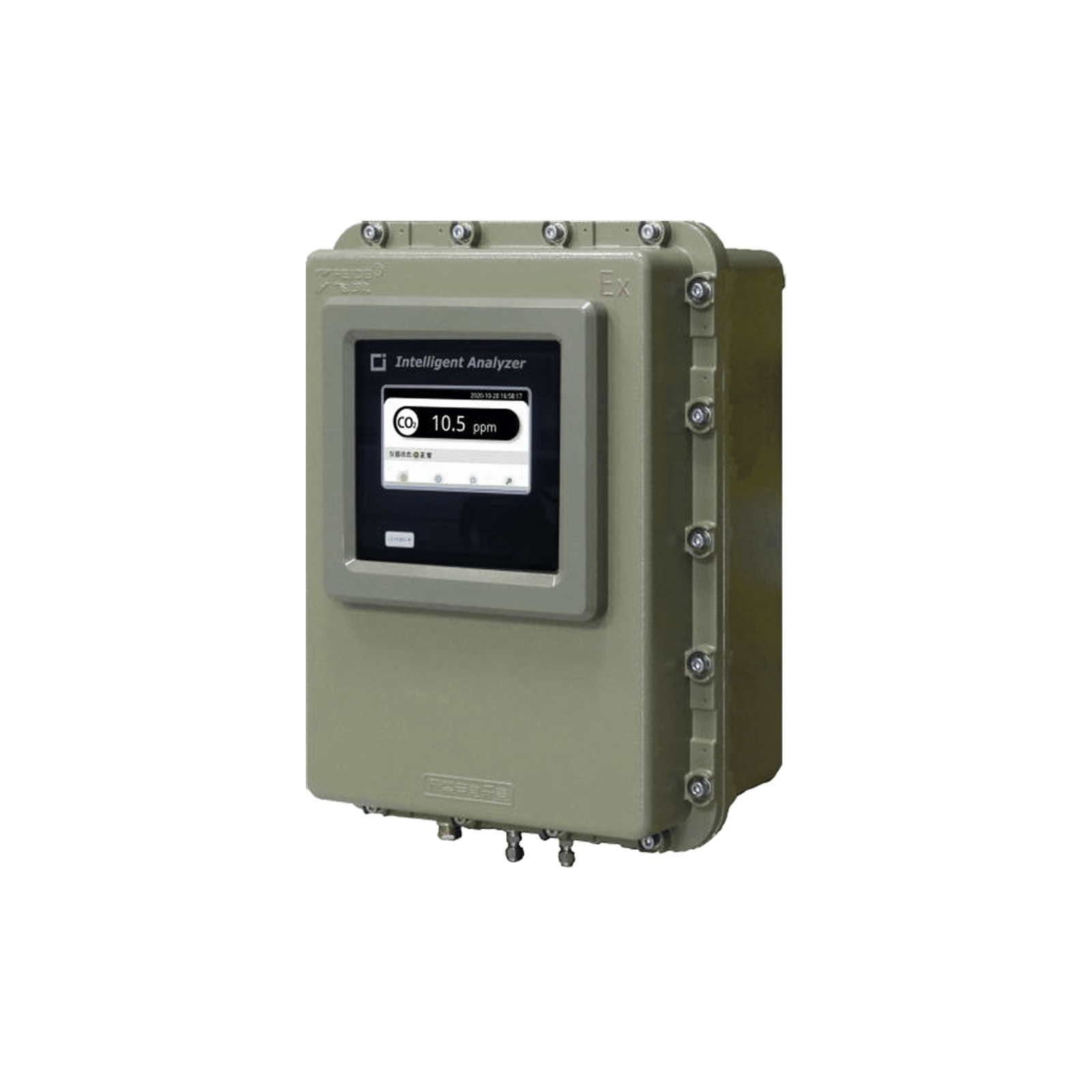

CI-PC68-X Explosion-proof Laser Gas Analyzer
CI-PC68-X Explosion-proof Laser Gas Analyzer
-
Optional sampling chamber available for high-temperature processes, pressure fluctuations, and harsh mechanical environments;
-
Direct contact probe or sampling chamber options for flexible installation;
-
Resistant to corrosive chemical gases;
-
Withstands extreme humidity and even direct exposure to liquid water;
-
Low maintenance design;
-
Built-in preventive maintenance diagnostics;
-
Heated optical surfaces to prevent condensation;
-
Integrated stainless steel mesh filter and optional porous PTFE filter for effective dust and particle protection of the optical probe.
Principle: TDLAS (Tunable Diode Laser Absorption Spectroscopy)
Measuring Range:
| Component | Range | Selection Code |
| O2 | 0~99.9% Vol | A |
| CO2 | 0~99.9% Vol | B |
| CO | 0~99.9% Vol | C |
| CH4 | 0~90.0% Vol | E |
| HF | 0~1.000% Vol | J |
| HCL | 0~1.00% Vol | M |
| NH3 | 0~10.00% Vol | N |
Note:
1) The gases listed above are part of the measurable gas options; additional gases can be customized based on user requirements.
2) Measurement ranges can be configured according to user needs.
Accuracy: ±1 FS%
Temperature Drift: ±1% reading
Stability: ±1% reading/year
Zero drift: ±0.1%/year
